Automation Manager ®

This is a another way to create program.
(Programs, Scripts are others)

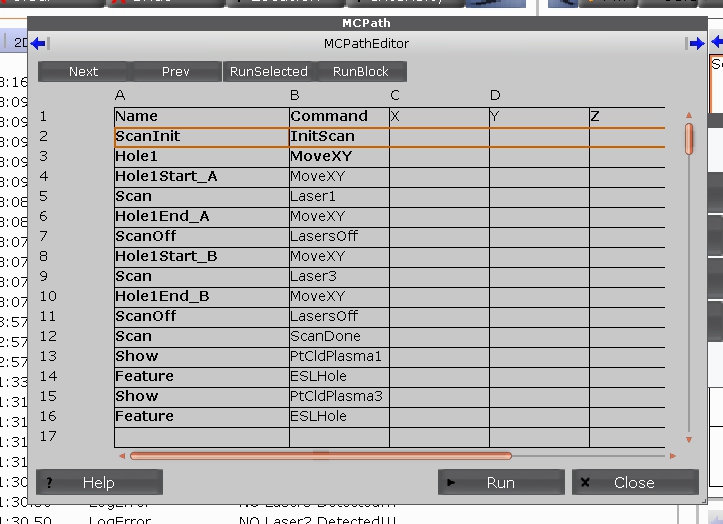

A row in a spreadsheet creates a set of tags / parameters.

These can are run by a sequence/script controlled by the MCPath tool/

---

---

A spread sheet can reflect any parameters data

Examples include name, location data, part program (sequences) to run geometries etc

Preference define when to start running and where to end (or number or rows) Alternatively via the user interface run the selected row(s) or next previous

Sample

The following is a script located in a sequence that is call the the MCPath program with data per row of the spreadsheet

Path = ::MCPath
EventLog = ::IPWindowCollection#1.EventsView
EventSrc = Print "Task"

x =  Path.X
Y = Path.Y
Z = Path.Z
Speed = Path.Speed
Command = Path.Command
Name = Path.Name


IsMove = [GCStringFind] Command, "Move"::FindLocation

if(IsMove > 0)
{

    Param = ::MachineCmdLocation

    Locals = [ParametersCreatable]
    [PARAMSetWrite] OutputParameters = Locals, \
            X = X, \
            Y = Y, \
            Z = Z, \
            Speed = Speed

    Tasks = ::GCTaskStack
    Prg = ::Programs.mcMoveCmd

    Title = print "Move:" Name

    [GCTaskStackStep] TaskStack = Tasks, \
        Program = Prg, \
        SrcParameters = Locals, \
        DestParameters = Param, \
        Name = Title


    Title = print "Wait:" Name
    Prg = ::Programs.mcMoveWait
    [GCTaskStackStep] TaskStack = Tasks, \
        Program = Prg, \
        Name = Title





    DEL Param
    DEL  mcController
}


if(Command == "TaskClear")
{

    Prg = ::Programs.TASKSClear
    [GCExeStep] Step = Prg

    IsMove = 1  // no stck task
}



if(IsMove  <= 0)
{

    [EventLogStep] Eventlog = EventLog, \
        Severity = 4,  Source = EventSrc,  Description = Command


    Locals = [ParametersCreatable]

    [PARAMSetWrite] OutputParameters = Locals, \
                Command = Command, \
                SubCommand = x

    Tasks = ::GCTaskStack
    Prg = ::Programs.mcPathTask
    [GCTaskStackStep] TaskStack = Tasks, \
            Program = Prg, \
            Name = Command, \
            SrcParameters = Locals





}

The following defines a generic script in a sequence...

EventSrc = Print "Task"
EventLog = ::IPWindowCollection#1.EventsView

//[EventLogStep] Eventlog = EventLog, \
 //   Severity = 0,  Source = EventSrc,  Description = Command



if(Command == "IOon")
{

    print "Turn On " SubCommand
    IOs  = ::DigitalIOCollection
    IO = [GCCollectionItem] Collection = IOs, IndexOrName = SubCommand::Item
    IOValid = [GCCollectionItem] Collection = IOs, IndexOrName = SubCommand::ItemIndex


    if(IOValid > 0)
    {
             [DigitalSetStep] IO = IO, State = 1
    }

}

if(Command == "IOoff")
{

    print "Turn Off " SubCommand
    IOs  = ::DigitalIOCollection
    IO = [GCCollectionItem] Collection = IOs, IndexOrName = SubCommand::Item
    IOValid = [GCCollectionItem] Collection = IOs, IndexOrName = SubCommand::ItemIndex


    if(IOValid > 0)
    {
             [DigitalSetStep] IO = IO, State = 0
    }

}


if(Command == "IOWaitOff")
{

    print Command + " " SubCommand
    IOs  = ::DigitalIOCollection
    IO = [GCCollectionItem] Collection = IOs, IndexOrName = SubCommand::Item
    IOValid = [GCCollectionItem] Collection = IOs, IndexOrName = SubCommand::ItemIndex


    if(IOValid > 0)
    {
             [DigitalWaitStep] IO = IO, WaitFor = 0, TimeOut = 60000
    }

}


if(Command == "Run")
{

    print "Run " SubCommand
    Prgs  = ::Programs
    Prg = [GCCollectionItem] Collection = Prgs, IndexOrName = SubCommand::Item
    PrgValid = [GCCollectionItem] Collection = Prgs, IndexOrName = SubCommand::ItemIndex


    if(PrgValid > 0)
    {

        [GCExeStep] Step = Prg
    }

}
