Wheel/Tire - Schenkrotec

Automation Manager is the slave to the product PLC. During the vision cycle Automation Manager measures the location of the two dot on the tire and wheel. On dot absence we raise and alarm and allow the operator to manually override. The vision communicates the offset to the PLC through the Ethernet. The vision PC will keep statistics. The last n Error images will be saved.

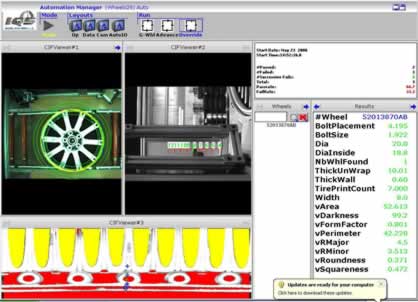

Automation Manager is also capable of wheel and tire identification show below.
